Top 5 Water Recycling Systems for Olive Oil Production

Producing 1 liter of extra virgin olive oil uses about 3,914 liters of water. Most of this is consumed in agriculture, and the olive oil production process generates millions of cubic meters of polluting wastewater every year. To address this, advanced water recycling systems are turning waste into reusable resources, reducing costs, and helping producers meet stricter regulations.

Here are the top 5 water recycling systems for olive oil production:

• ALGATEC Membrane Filtration System: Combines algae and membrane technology, achieving up to 99% pollutant removal and producing drinkable-quality water. Costs range from $2.60–$11.30 per 1,000 gallons.
• UASB Reactors: Uses bacteria to treat wastewater, generating biogas and reducing COD by 82%. Ideal for small to large-scale operations with low energy needs.
• Advanced Oxidation Processes (AOP): Breaks down stubborn pollutants using hydroxyl radicals. Effective for pesticide-laden wastewater but energy-intensive.
• Integrated Membrane Technologies: Combines ultrafiltration, nanofiltration, and reverse osmosis for high water recovery and phenol removal. Suitable for various production sizes.
• High-Tech Antioxidant Recovery & Composting: Treats wastewater, recovers antioxidants, and produces organic fertilizer. Achieves 99.99% polyphenol reduction.

Quick Comparison

These systems not only recycle water but also recover valuable byproducts like antioxidants and biogas, supporting a circular approach to olive oil production. Choosing the right system depends on production scale, budget, and specific needs.

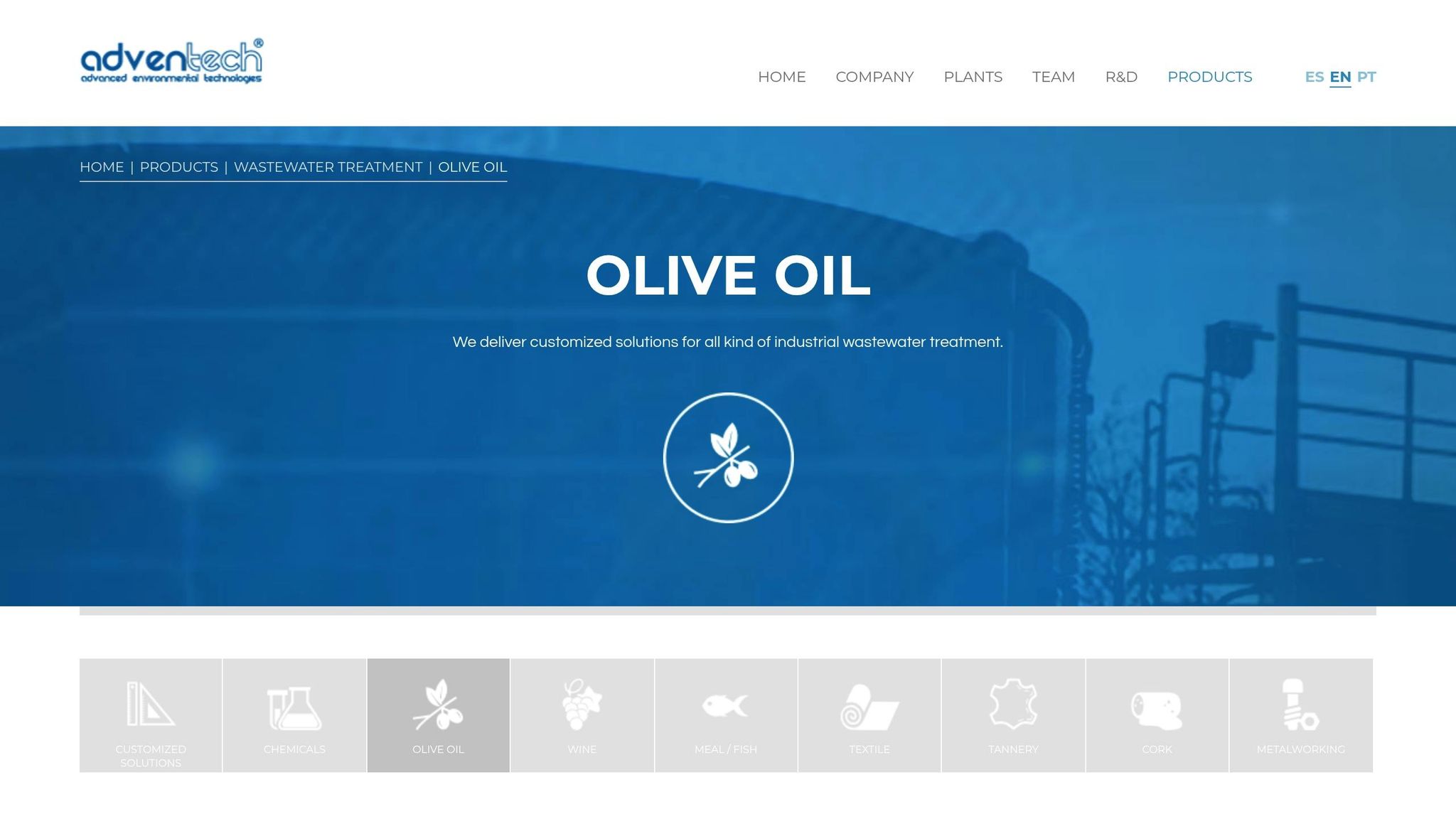

Adventech | Olive Mill Wastewater Treatment

1. ALGATEC Membrane Filtration System

The ALGATEC Membrane Filtration System combines algae cultivation with membrane technology to deliver efficient water treatment. It features a photobioreactor (PBR) integrated with a membrane module, creating a highly effective treatment process.

The system operates in three main phases: it starts with initial water filtration, moves to a photobioreactor where algae and sunlight work together to break down contaminants, and finishes with membrane filtration, typically using ultrafiltration followed by nanofiltration.

Pollutant Removal Efficiency

During the ALGATEC Project (2009–2011) conducted at DESAM facilities in Spain, the system delivered outstanding results: 100% reduction in BOD, 95% reduction in COD (with more than 60% of this occurring in the photobioreactor), and nearly 100% reduction in turbidity, color, and phenols. The follow-up ALGATEC II Project (2013–2014) improved on these outcomes, achieving over 97% reduction for most parameters. COD reduction exceeded 99%, and total phenols dropped by 97.4%, while reductions for total solids (TS), total volatile solids (TVS), and total fixed solids (TFS) consistently surpassed 90%.

These results highlight the system's ability to deliver high-quality water suitable for reuse.

Water Reuse Capability

The treated water meets drinking water standards, making it ideal for closed-loop recycling in olive washing processes. By using this system, drinkable water consumption in olive washing can be cut by 90%, while overall water efficiency improves by 80%.

Treatment costs range from $2.60 to $11.30 per 1,000 gallons, significantly undercutting the traditional cost of $17.40. This adds only about $0.005 to $0.001 per liter to production costs.

Scalability for Different Production Sizes

The system's modular design makes it an affordable and practical solution for small and medium-sized enterprises. Real-world testing at the Almazara de la Cooperativa de los Desamparados in Puente Genil (Córdoba) has demonstrated its effectiveness. With over 8,349 olive mills operating across Spain, Italy, and Greece as of 2010–2011, the potential for widespread adoption is immense. Additionally, the investment and operational costs add less than $0.011 per liter to the overall cost of olive oil production.

This flexible design ensures the system can adapt to various production scales with ease.

Additional Benefits

The ALGATEC system goes beyond water treatment by incorporating solar power, enhancing its eco-friendly profile. The photobioreactor not only purifies water but also generates algae biomass, which can be harvested and repurposed, aligning with a zero-waste approach. Furthermore, the final treated water is clean enough for irrigation, offering additional options for agricultural reuse.

2. Anaerobic Upflow Sludge Blanket (UASB) Reactors

UASB reactors utilize an upflow design that efficiently handles high-organic olive mill wastewater. This design encourages the formation of granular sludge that naturally settles, creating dense populations of active bacteria. The result? A system that processes more wastewater in less space. When paired with advanced technologies like ALGATEC, UASB reactors provide a strong biological treatment option.

Pollutant Removal Efficiency

Studies indicate that UASB reactors can remove up to 82% of COD, reduce phenolic compounds by 59%, and achieve 78% BOD and 61% TOC reductions. However, additional secondary treatment might be required to meet stricter environmental standards.

Water Reuse Capability

Treated water from UASB reactors significantly lessens environmental harm compared to discharging untreated olive mill wastewater. By reducing the risk of eutrophication - a common problem with untreated effluents - this treatment method promotes sustainability. With minimal post-treatment, the effluent can be reused for irrigation. Plus, UASB reactors remain effective even after idle periods, aligning well with the seasonal nature of olive oil production.

Scalability for Different Production Sizes

UASB reactors are adaptable for olive oil producers of all sizes. Their economic feasibility depends on factors like the organic loading rate, hydraulic retention time, and the presence of inhibitory substances such as polyphenols. For large-scale operations, centralized treatment plants are an appealing option. For instance, a centralized system processing approximately 206,000 gallons per day demonstrated a 6% IRR, a $2.2 million NPV, and a 12-year payback period. Smaller producers benefit from the system's low energy needs and straightforward design, though transportation costs for wastewater may rise with plant capacity.

Additional Benefits

UASB reactors go beyond pollutant removal by offering economic and energy advantages. The anaerobic process generates biogas, which can be used as renewable energy, cutting costs and reducing the carbon footprint. These systems also produce three to five times less sludge than aerobic methods, lowering disposal costs and maintenance efforts. The residual sludge can be converted into soil fertilizer, adding even more value. For example, in Greece, electricity generated from biomass is sold at around $220 per megawatt-hour, while fertilizer derived from the treatment process is valued at about $0.39 per pound.

3. Advanced Oxidation Processes (AOP)

Advanced Oxidation Processes (AOP) are a powerful method for treating olive mill wastewater. They rely on hydroxyl radicals, which are highly effective at breaking down stubborn pollutants through oxidation. These radicals outperform other oxidizing agents like ozone or hydrogen peroxide in tackling the complex organic compounds found in olive mill wastewater .

Pollutant Removal Efficiency

AOPs are particularly effective at addressing the wide variety of organic pollutants in olive mill wastewater. These pollutants include aromatic compounds like catechol, p-coumaric acid, and tyrosol, as well as aliphatic substances such as hexane, octane, and decanoic acid. The organic load in this wastewater typically ranges between 80 and 200 grams per liter, depending on the extraction method used.

For example, the Photo-Fenton process achieves impressive results, with turbidity reductions of 78.3% ± 6.4%, COD (Chemical Oxygen Demand) reductions of 82.9% ± 0.1%, and TOC (Total Organic Carbon) reductions of 68.9% ± 8.2%. Additionally, a Fenton combined with ozone process at pH 9 can remove about 76% of total phenolic content. These techniques can reduce pollutant concentrations from several hundred parts per million to less than 5 parts per billion. Such efficiency makes AOPs a strong contender for enabling water reuse in olive oil production.

Water Reuse Capability

Thanks to their high pollutant removal rates, AOPs can transform olive mill wastewater into water that’s suitable for reuse. By converting organic pollutants into water, carbon dioxide, and salts, they allow producers to recycle treated water back into production processes or use it for irrigation. When combined with other treatment methods - like membrane filtration, flocculation, and advanced filtration - AOPs ensure compliance with discharge standards while maximizing water recovery . For facilities dealing with pesticide contamination, AOPs can degrade harmful pesticides while preserving beneficial polyphenols. Ozonation, in particular, helps meet limits for phenols, total suspended solids, and sulfate .

Scalability for Different Production Sizes

AOP systems are versatile enough to accommodate various production scales, thanks to flexible reactor designs and operational setups. Scaling up requires careful consideration of the oxidizing agents’ properties, such as their half-lives and stability during transport and dosing. For oxidizing agents with short half-lives, like hydroxyl and sulfate radicals, continuous-flow reactors are ideal for large-scale operations. These reactors generate the radicals on-site, ensuring a steady supply for continuous treatment. On the other hand, smaller operations can use batch reactors with more stable oxidizers, such as ozone, hydrogen peroxide, or hypochlorous acid, which are easier to transport and store. Batch reactors can also be paired with sequencing batch reactors to handle additional treatment needs, making them adaptable to seasonal production fluctuations. The choice between continuous-flow and batch systems depends on factors like efficiency, site constraints, logistics, and overall costs.

Additional Benefits

Apart from their efficiency in pollutant removal, AOPs offer economic advantages. They are cost-effective and operationally efficient, making them a practical choice for olive oil producers. For instance, while ozonation costs around $12.90 per 1,000 gallons - about 2.3 times more than the Photo-Fenton process at $5.60 per 1,000 gallons - it can handle complex wastewaters that other methods might struggle with. AOPs also open up opportunities to recover valuable compounds, such as preserving polyphenols while degrading pesticides, potentially turning waste treatment into a source of revenue. Additionally, methods like ozonation and UV irradiation help meet state and federal disinfection standards, simplifying the permitting process and ensuring long-term operational compliance. These benefits not only make AOPs a practical solution but also support the broader goals of efficient and sustainable water treatment for olive oil production.

sbb-itb-4066b8e

4. Integrated Membrane Technologies

Integrated membrane technologies are proving to be a game-changer in water recycling for olive oil production. By combining microfiltration (MF), ultrafiltration (UF), nanofiltration (NF), and reverse osmosis (RO), these systems provide an efficient and economical way to treat olive mill wastewater, even with chemical oxygen demand (COD) levels as high as 200 g/L.

Pollutant Removal Efficiency

This multi-step membrane process is highly effective at removing pollutants, with each stage focusing on specific contaminants. Ultrafiltration can remove up to 90% of solid lipids and 50% of phenolic compounds, while nanofiltration boosts phenol removal to over 95%. In one setup, a centrifugation-UF process reduced COD by 55% during pretreatment and achieved a 90% reduction at the system's output. When UF, NF, and RO are combined, they significantly reduce conductivity, salinity, and turbidity. For two-phase olive mill wastewater, a bench-scale RO system demonstrated complete removal of suspended solids, phenols, and iron, while achieving 99.4% COD rejection and 98.2% conductivity reduction. These results ensure the treated water meets the strict standards required for reuse.

Water Reuse Capability

Integrated membrane systems produce water clean enough for reuse in both agriculture and industry. When RO is used as the final step, the resulting permeate is suitable for safe discharge into sewage systems or for reuse in irrigation and olive oil production. This is particularly critical since agriculture accounts for over 70% of global water use, a concern highlighted by regulations like the European Directive 2000/60/CE.

Scalability for Different Production Sizes

One of the standout features of these systems is their compact and modular design, which makes them adaptable to various production scales. Olive mills, often small and seasonal, typically generate between 2,640 and 3,960 gallons of wastewater daily from oil extraction and about 264 gallons per ton from washing. Membrane technology’s flexibility and moderate investment requirements make it feasible to scale these systems for both small and larger operations.

Additional Benefits

The benefits of integrated membrane systems go beyond pollutant removal and scalability. These systems not only recycle water but also recover valuable phenolic compounds, turning waste into a potential revenue stream. They operate with lower energy requirements, eliminate the need for chemical additives, and maintain high-quality effluent. Advances in membrane materials and effective pretreatment methods help minimize fouling, ensuring consistent performance and extending the lifespan of the membranes.

5. High-Technology Antioxidant Recovery and Composting System

Building on earlier methods of water recycling, high-tech antioxidant recovery and composting systems offer a cutting-edge way to turn waste into useful resources. This system combines advanced filtration techniques, specialized adsorption resins (like XAD16 and XAD7HP), and thermal evaporation to treat olive oil mill wastewater. The result? Cleaner water for reuse and the recovery of valuable bioactive compounds.

Pollutant Removal Efficiency

A pilot-scale system has shown impressive results, achieving a 99.99% reduction in polyphenols and a 98% decrease in Chemical Oxygen Demand (COD) in olive oil mill wastewater. To put this in perspective, untreated wastewater usually contains a COD of around 120 g/L (about 1 lb per gallon) and total phenols of 2.5 g/L (roughly 0.02 lb per gallon). After treatment, these values drop significantly to 2.1 g/L for COD and just 0.25 mg/L for total phenols - only 0.01% of the original levels. These reductions make the water suitable for reuse in various applications.

Water Reuse Capability

This integrated process - combining filtration, antioxidant recovery, and composting - produces water that meets high-quality standards. The treated water is suitable for uses like irrigation, washing machinery, and even reintroducing into the olive oil production process. Membrane technologies like ultrafiltration and nanofiltration play a key role, reducing the organic load in wastewater by about 95%. This ensures the water not only meets environmental standards but also minimizes the overall ecological footprint.

Additional Benefits

The benefits extend beyond water reuse. These systems are also highly effective at recovering antioxidants and generating energy. For example, the recovery process can extract up to 65% of polyphenols after two filtration steps, increasing to 85% with ultrafiltration - a 40% improvement compared to traditional methods. The LIFE00 ENV/GR/000671 project demonstrated the potential of this approach, turning olive oil mill waste into valuable bioactive compounds and organic fertilizers.

In addition, anaerobic co-digestion of olive mill wastewater with other agricultural by-products has proven effective for methane production. The resulting biogas typically contains 75–80% methane, making it a viable energy source. Meanwhile, composting the solid residues creates an organic fertilizer that improves soil quality, both chemically and physically. This integrated system not only addresses wastewater treatment but also supports a circular economy, aligning perfectly with sustainable olive oil production goals.

System Comparison Chart

When selecting a water recycling system for olive oil production, it's essential to weigh how each technology performs across several critical factors. The table below highlights the main features, benefits, and trade-offs of various systems:

These comparisons lay the groundwork for understanding the trade-offs between performance, cost, and practicality. Below are examples that further illustrate these dynamics.

For instance, a combined electrocoagulation and adsorption method achieved 62.6% removal of total phenols and 72.9% of COD, with energy consumption at 14.3 kWh/m³ and costs of $3.92 per cubic meter. This approach outperformed standalone electrocoagulation by up to 20%, showing how combining systems can boost efficiency despite increased energy use.

Cost and energy requirements vary significantly across systems. Membrane technologies like ALGATEC and Integrated Membrane Technologies deliver high water recovery but come with higher capital and operational expenses. On the other hand, UASB reactors are more budget-friendly but provide moderate recovery rates. Adsorption methods offer flexibility at a lower cost but tend to have limited treatment capabilities.

The scale of the challenge is immense. In the Mediterranean alone, olive oil production generates about 30 million cubic meters of wastewater annually, with global figures reaching 40 million cubic meters. Effective recycling solutions are essential to ensure sustainable production practices.

Operational differences also add complexity. Bioremediation techniques are environmentally friendly but require longer treatment times and may not fully address all contaminants. By contrast, Advanced Oxidation Processes work faster but demand more energy and chemical inputs.

Ultimately, olive oil producers must balance upfront investments with long-term efficiency. Advanced systems like High-Tech Antioxidant Recovery & Composting can create additional value by recovering antioxidants and producing organic fertilizers, though they require more sophisticated infrastructure. Meanwhile, cost-effective options like UASB reactors may appeal to those prioritizing affordability, even if they involve compromises in recovery rates and processing speed.

Conclusion

Water recycling systems play a crucial role in making olive oil production more sustainable by tackling environmental concerns and improving operational efficiency. With the industry generating vast amounts of wastewater each year, the push for effective treatment solutions has never been more pressing.

The environmental impact is undeniable. Olive oil production wastewater is rich in organic pollutants, which, if untreated, can severely harm soil, water resources, and surrounding ecosystems.

Modern treatment systems offer both environmental and economic advantages. For instance, advanced facilities can yield impressive returns, with smaller operations achieving return on investment rates of 27.6% and larger plants reaching up to 49.6%. Beyond waste management, these systems add value by recovering useful byproducts like antioxidant extracts - up to 2.7 kg per cubic meter of treated wastewater - and producing biogas that generates 1.6 cubic meters of methane per cubic meter processed.

For high-end producers like Big Horn Olive Oil, known for their ultra-premium products, adopting these technologies underscores their dedication to sustainability while maintaining exceptional quality. These systems help meet strict environmental regulations and align with consumer demands for responsible production.

Some technologies, such as Algatec, even deliver treated water that meets drinking-quality standards. As Antonia Lorenzo from Bioazul explains:

"We have achieved drinking quality in this treated water, in which no pollution remains."

Studies also show that properly treated wastewater can be used to irrigate olive groves without compromising product quality - and in some cases, it may even boost yields. This circular approach significantly reduces the industry's water footprint, which currently stands at a staggering 3,914 liters of fresh water per liter of olive oil produced.

The broader implications go beyond finances. With water scarcity becoming more severe due to climate change - especially in traditional olive-growing areas where rainfall has plummeted to levels ten times below average - recycling systems are essential for the industry's long-term survival. These technologies not only minimize environmental impact but can also cut costs and open up new revenue opportunities through byproducts like biogas and antioxidants.

Choosing the right recycling system requires balancing initial investment with long-term goals. Ultimately, these systems are more than just an environmental solution - they are a strategic step toward ensuring the sustainable future of olive oil production.

FAQs

How do water recycling systems like ALGATEC and UASB reactors help make olive oil production more sustainable?

Water recycling technologies like ALGATEC and UASB reactors are transforming olive oil production into a more eco-conscious process. ALGATEC employs cutting-edge biotechnology to recycle wastewater, cutting fresh water usage by up to 90% during key steps such as olive washing. This approach not only saves precious water but also helps reduce the risk of pollution.

On the other hand, UASB reactors take organic waste and process it into biogas, a form of renewable energy. This dual-purpose system lowers energy costs, curbs greenhouse gas emissions, and keeps harmful pollutants from contaminating water sources. Together, these innovations are reshaping olive oil production by conserving resources and minimizing its environmental footprint.

What should olive oil producers look for when selecting a water recycling system?

When selecting a water recycling system, olive oil producers should prioritize efficiency, cost, and environmental impact. An ideal system should be capable of removing phenolic compounds and other contaminants from wastewater, ensuring it is safe for reuse or discharge.

Producers should also consider how well the system integrates with their current production processes, its long-term affordability, and its role in supporting environmentally responsible practices. Commonly used technologies include thermal separation, biological treatments like microalgae recycling, and advanced options such as ozonation and anaerobic digestion. Choosing the right system not only enhances operational performance but also contributes to greener olive oil production.

How do advanced water recycling systems help olive oil producers save money and boost revenue?

Advanced water recycling systems offer olive oil producers a practical way to reuse water, significantly reducing waste and trimming operational costs. By using less water from external sources, producers can cut expenses while making strides toward a more sustainable operation.

These systems also come with added perks. For instance, they can help producers qualify for eco-friendly certifications or access government incentives, potentially unlocking new revenue streams. On top of that, better water management can lead to healthier crops and superior olive oil quality, boosting both productivity and profits. Choosing to invest in such systems isn’t just environmentally responsible - it’s a financially savvy move for olive oil producers.
